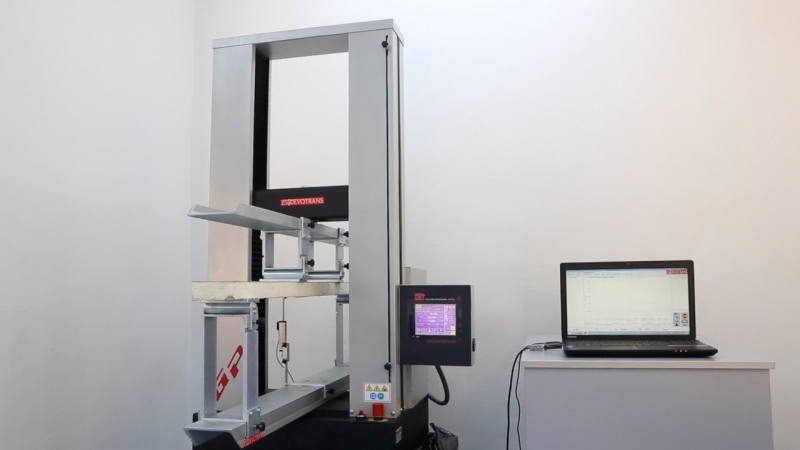

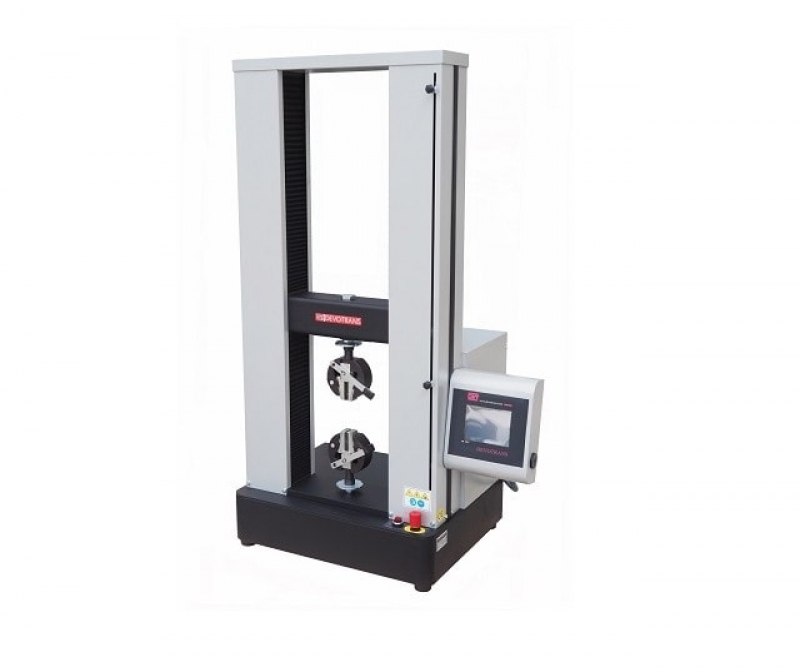

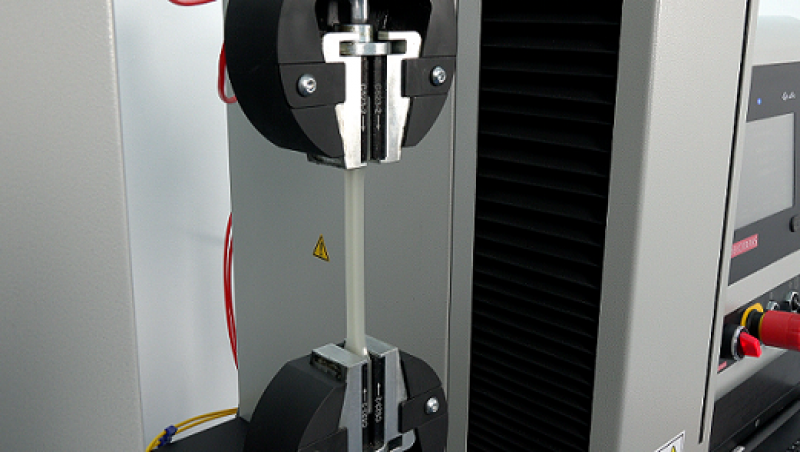

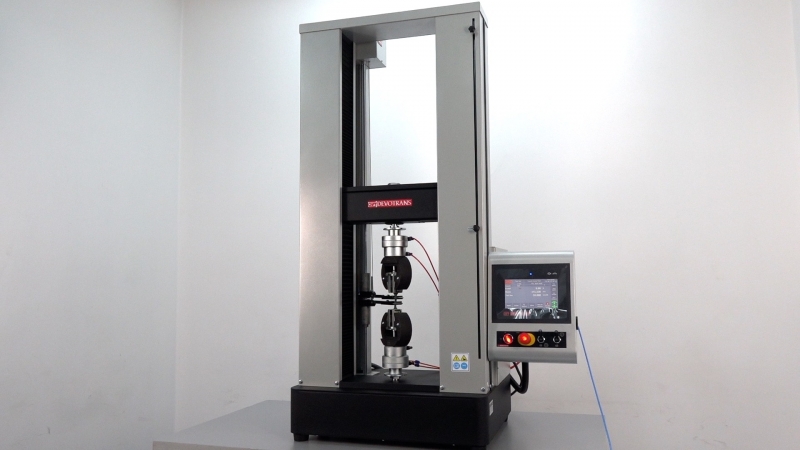

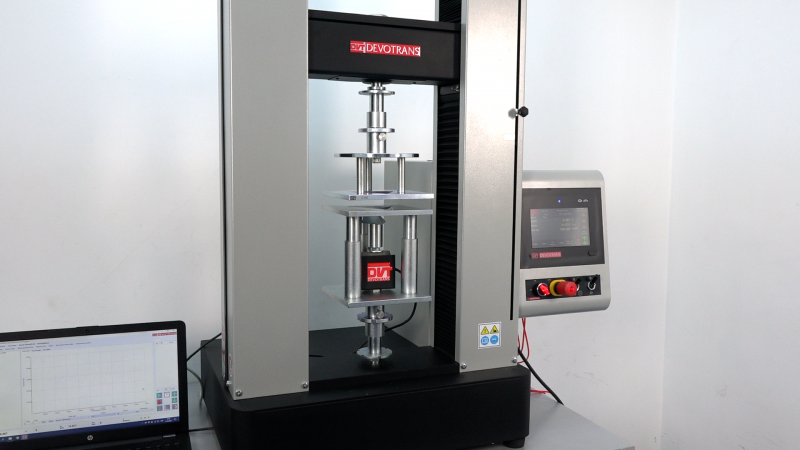

TENSILE COMPRESSION TESTING MACHINE DVT GP D NN DVT GP D NN
Used for measuring endurance of materials. If the option of extensometer is chosen, high precision measurements are possible.
INDUSTRIAL SECTORS OF USE
TECHNICAL INFORMATION
- Operating voltage: 220VAC, 50 Hz.
- Power consumption is: max. 1 KVA.
- Speed adjustment is between 0.001 -500.000 mm/min.

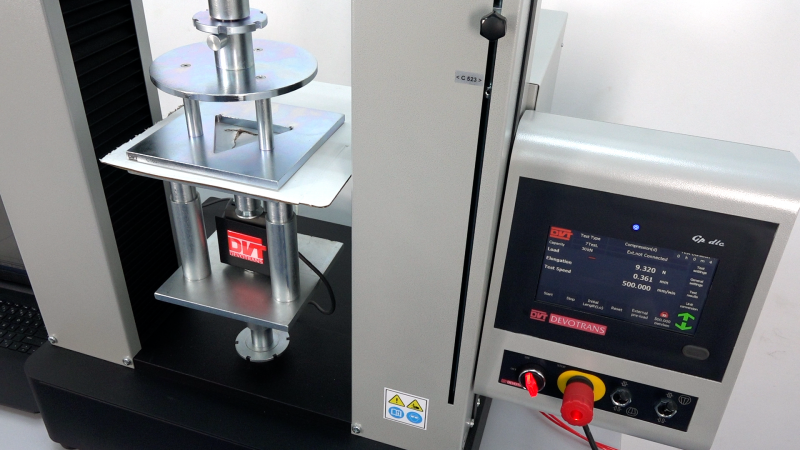

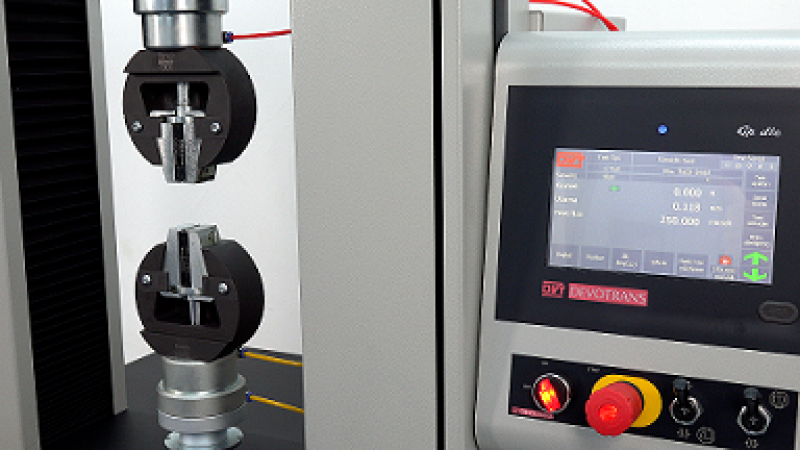

- Colour touch screen.
- Double columns, double screws system.
- Emergency stop button.
- Rapid return to the starting point.
- Programmable stop option.
- Sensitivity: ± 0.5%.
- Motion sensitivity: 0,001 mm.
- Force unit: Newton, kN, kg or MPa.
- Stops, depending on the breakout, breakage and distance.
- Turkish, English, French and Russia language options.
INDUSTRIES OF APPLICATION
- Metal manufacturers,
- Wire manufacturers,
- Textile, footwear,
- Plastic, rubber,
- Automotive,
- Medical supplies,
- Forestry,
- Construction,
TESTS PERFORMED WITH THE DEVICE

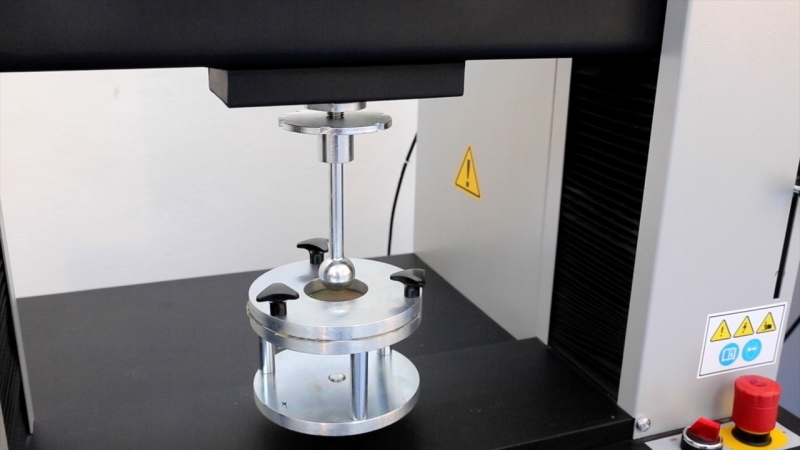

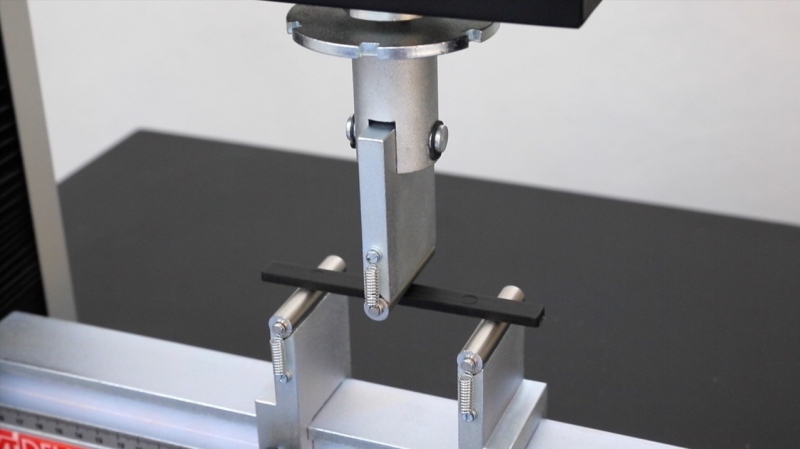

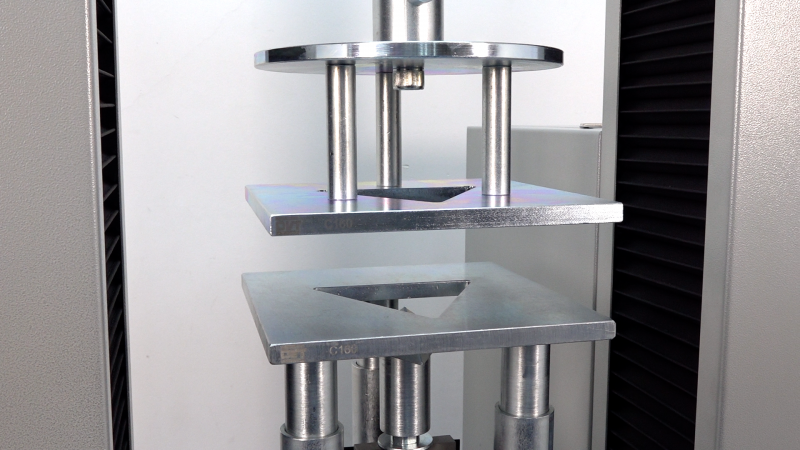

Product testing, such as opening/closing, fracture, tearing, compression, breaking, stretching, permanent deformation, puncture.
PRODUCTS SUBJECT TO TESTING
- Aluminum, copper, spring, sheet metal profile…
- Steel, iron…
- Jute, Cable, steel wire…
- Plastic products, Automotive and supplier industry,
- Forest products, Construction materials,
- Glues,
- Fabrics, leather, artificial leather, zipper,
- Glass, porcelain, Paper etc.
OPTIONAL ADDITIONS

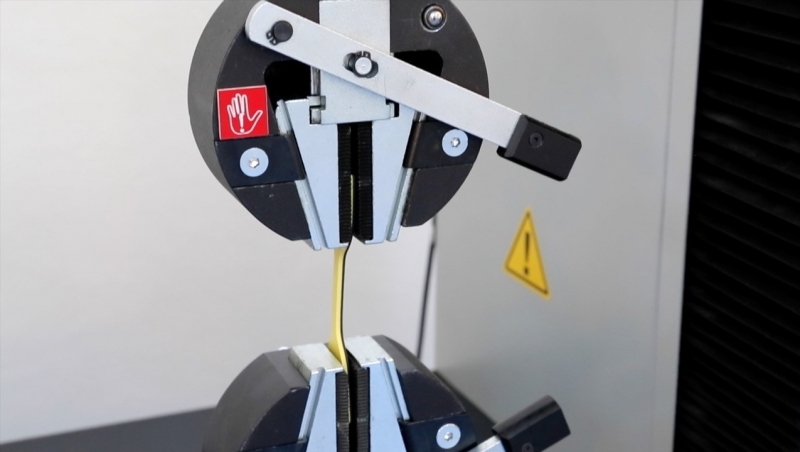

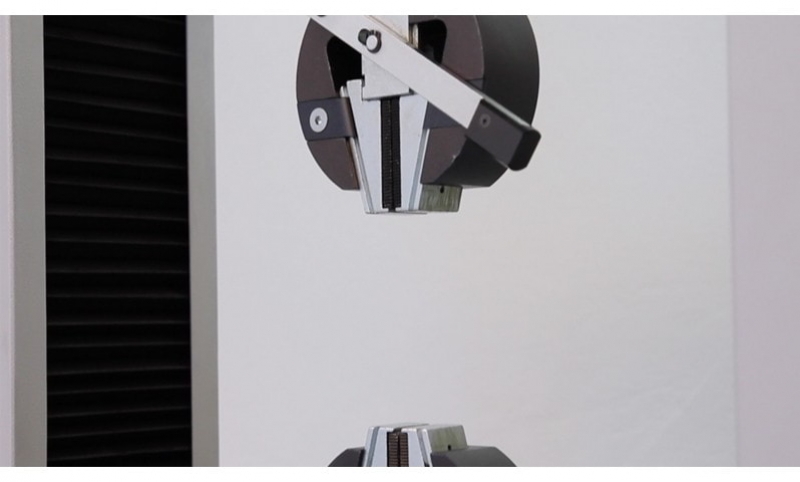

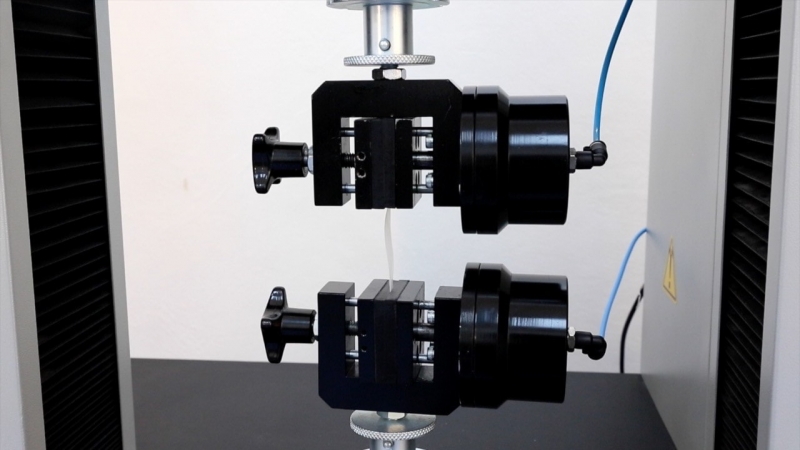

- Different jaw models available.

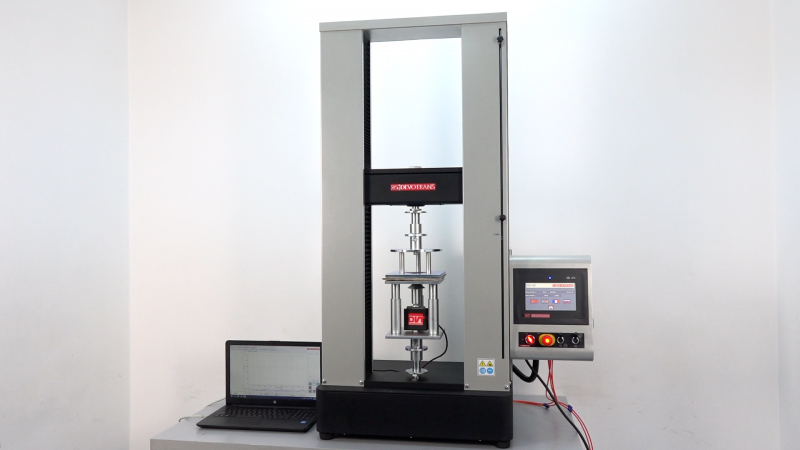

- Computer and printer connections.
- Additional equipments for special tests.

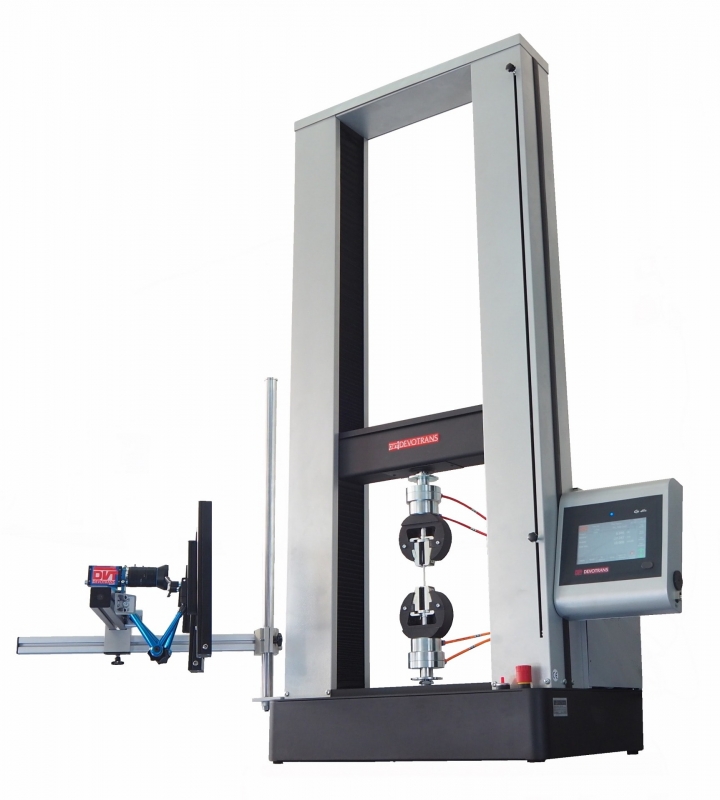

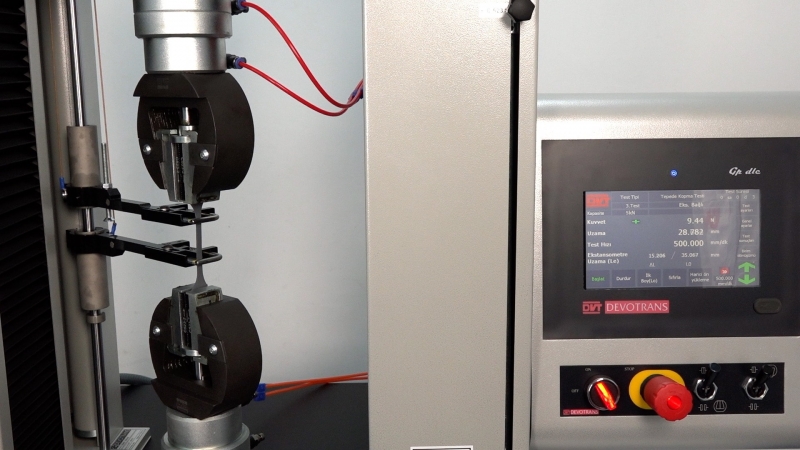

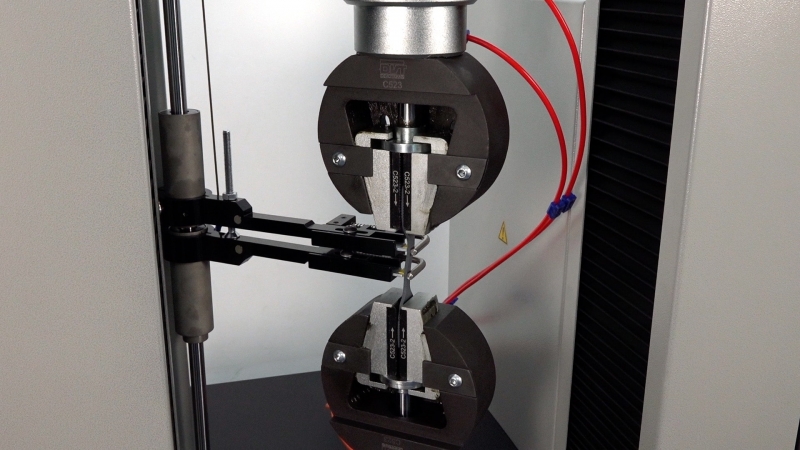

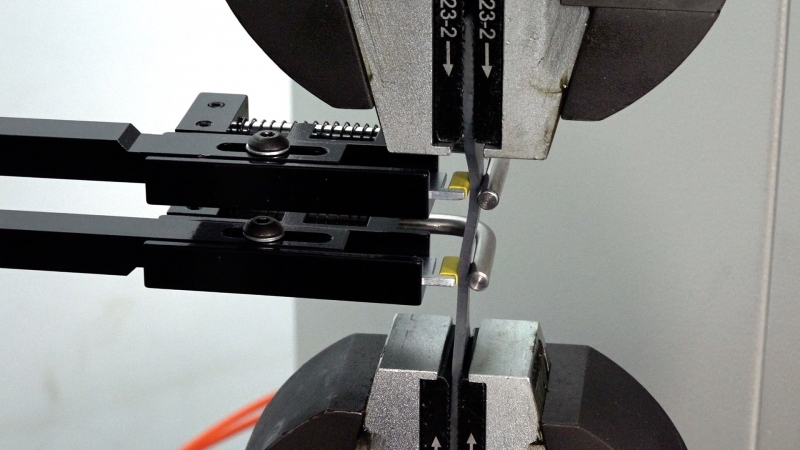

- Extensometer.
- Warm - cold ambient test chambers.
- Metal or plexiglas safety cage.
- Light barrier.
APPROXIMATE DIMENSIONS AND WEIGHT
- Width : 83 cm
- Depth : 52 cm
- Height : 134 cm
- Weight : 110 kg
TECHNICAL DOCUMENTATION
RELEVANT STANDARDS
- TS EN ISO 7500-1/527-3/6892-1/
- TS 1398-1EN ISO 527-1
ADDITIONAL INFORMATION
The Tensile Compression Testing Machine is ideal for determining the endurance and mechanical resistance of diverse materials such as metals, plastics, textiles, and construction elements. It provides high-precision testing with ±0.5% sensitivity and 0.001 mm motion resolution. The programmable control via a color touch screen, combined with a double-column, double-screw system, ensures reliable and customizable testing procedures. Compatible with TS EN ISO 7500-1 and other relevant standards, it supports multiple force units and languages for broad usability. With options like extensometer, temperature chambers, and custom grips, the device adapts to specialized needs in automotive, medical, and manufacturing sectors.
