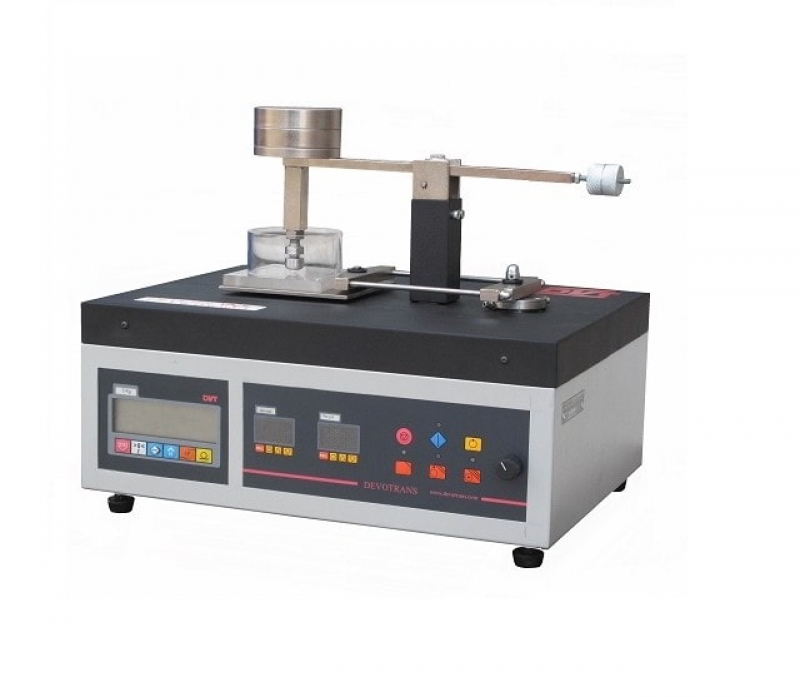

METAL SCRATCH TESTER

METAL SCRATCH TESTER DVT MCD DVT MCD

Used for determining the amount of scratch on dry or wet metal surface.

INDUSTRIAL SECTORS OF USE

TECHNICAL INFORMATION

  • Friction force is read and transferred to graphic.
  • Friction distance is adjustable.
  • Friction speed is adjustable.
  • Test period counter.
  • Various compression forces can be applied.
  • Test is possible in wet and dry environment.
  • Designed  for friction scratch of metals.
  • 1 sample station.
  • 2 weights as 500 grams and  1000 grams.

APPROXIMATE DIMENSIONS AND WEIGHT

  • Width : 540 mm.
  • Depth : 400 mm.
  • Height : 400 mm.
  • Weight : 31 Kg.

TECHNICAL DOCUMENTATION

Specification Sheet

RELEVANT STANDARD

  • ASTM G133 05

ADDITIONAL INFORMATION

The metal scratch tester is designed in accordance with ASTM G133 05 to assess scratch resistance of metals under friction, whether in wet or dry conditions. It features adjustable friction speed and distance, enabling customized testing parameters. The device supports various compression forces, thanks to the inclusion of 500 g and 1000 g weights, making it suitable for a wide range of testing scenarios. A built-in test period counter facilitates precise monitoring, while the friction force reading and graphical transfer to a computer ensures accurate data analysis. The single sample station optimizes workflow efficiency during repeated tests.
