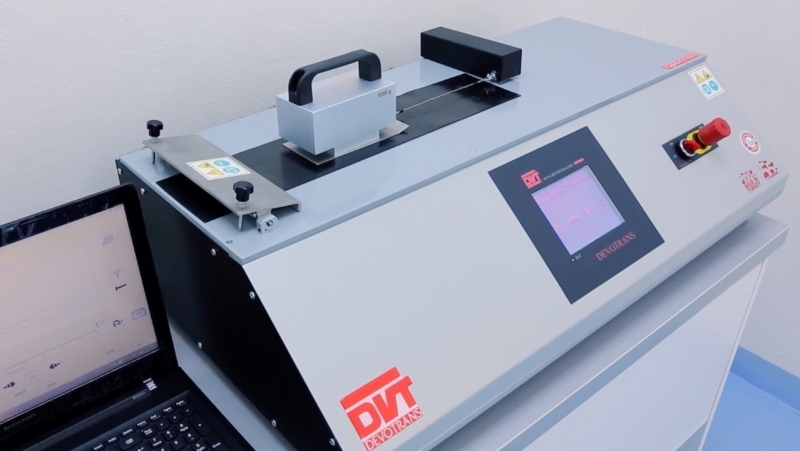

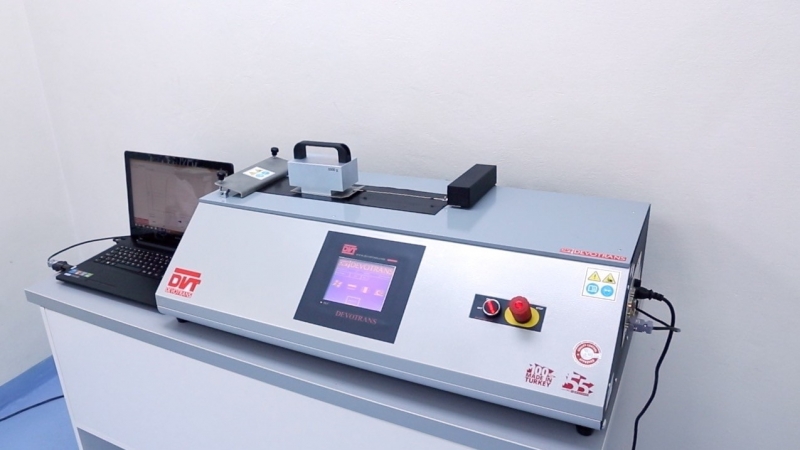

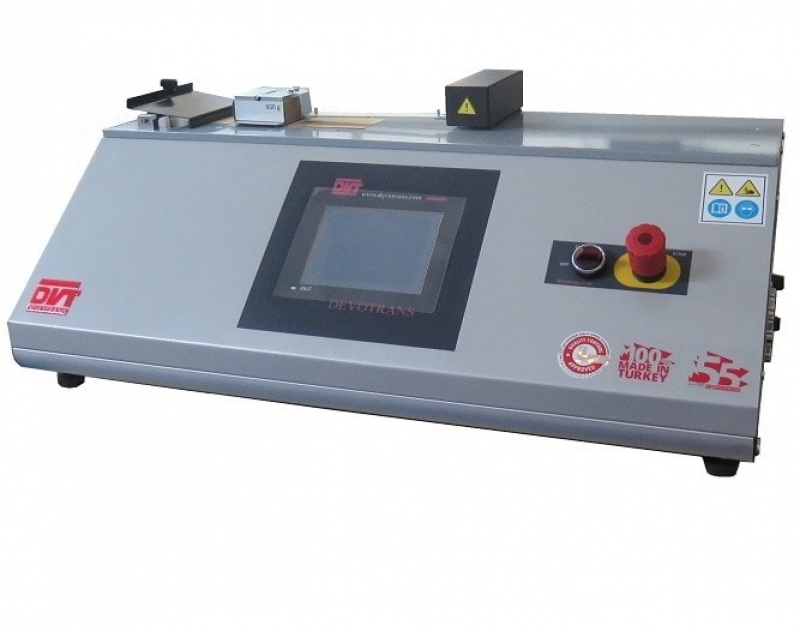

CO-EFFICIENT FRICTION TESTER DVT YS DVT YS
Used to test friction resistance of various materials.
It allows to determine static and kinetic friction coefficient of materials using the horizontal plane method.
INDUSTRIAL SECTORS OF USE
TECHNICAL INFORMATION
- Operation voltage : 220 V 50 Hz.

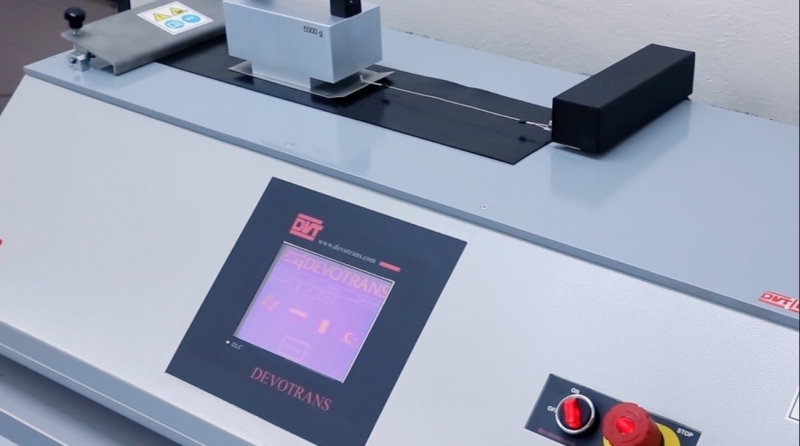

- Touch screen.

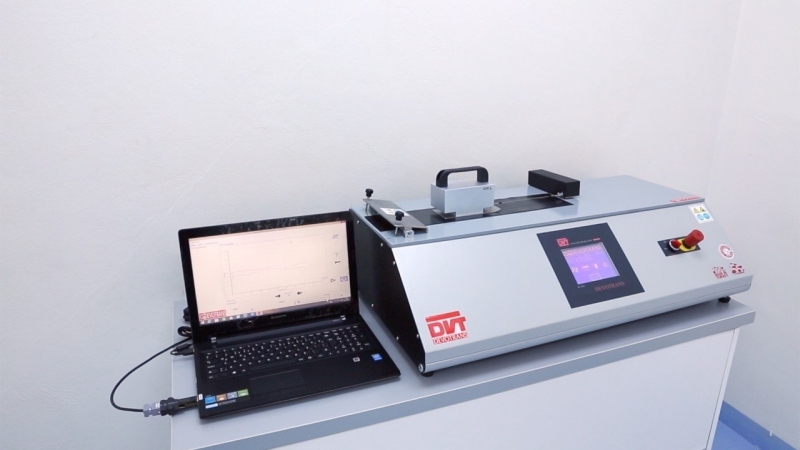

- Graphic output from PC.
- Static and dynamic co-efficient of friction (COF) values can be obtained.
- Real time graphic.
- Rapid return to the starting point.
- Test speed, distance are adjustable.
- Possibility to reach to the test archive.

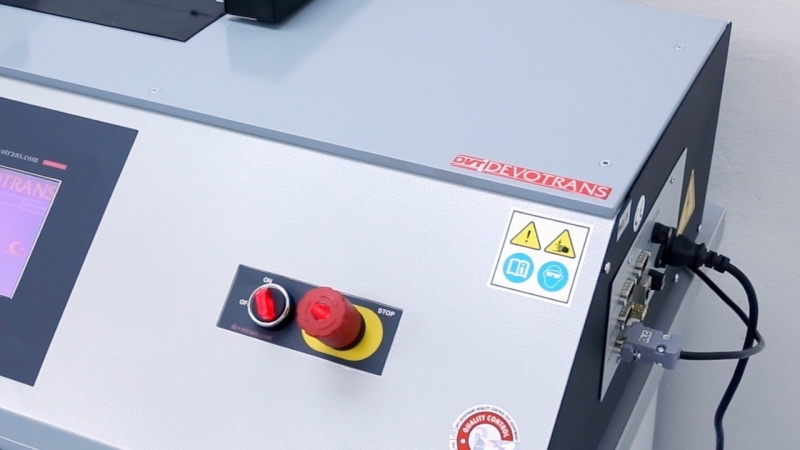

- Emergency stop button.

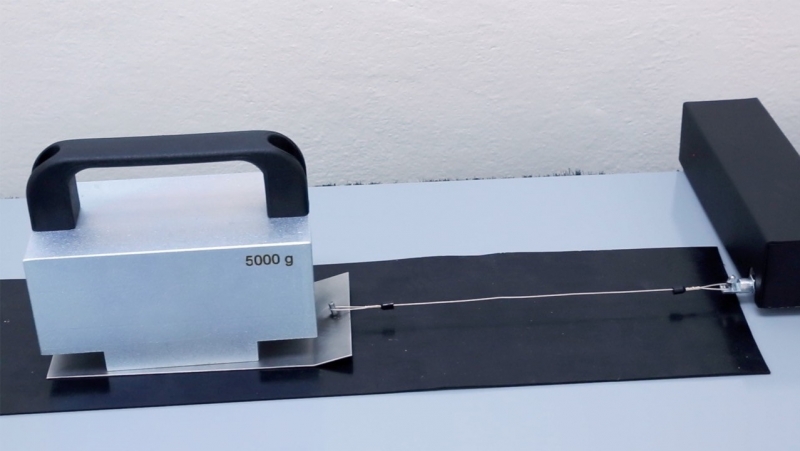

- Test mass.
- Force unit : N, kN, kgF, gF.
- Turkish, English, French and Russian language options.
INDUSTRIES OF APPLICATION
- Plastic
- Printing, paper, cardboard
- Rubber
- Shoe
- Packaging
- Leather
- Foil paper
- Plating
- Textile
- Composite
OPTIONAL ADDITIONS
- Test mass according to standards.
- Customized design for paper sample test.
APPROXIMATE DIMENSIONS AND WEIGHT
DVT YS
- Width: 70 cm
- Depth: 39 cm
- Height: 29 cm
- Weight: 31.5 kg
DVT YS (large model)
- Width: 90 cm
- Depth: 50 cm
- Height: 28 cm
- Weight: 39 kg
TECHNICAL DOCUMENTATION
RELEVANT STANDARDS
- ISO 15359
- ISO 8295
- ASTM D 1894
- ASTM D 2534
- ASTM D 3330
- TS EN 21182
- TS ISO 15359
ADDITIONAL INFORMATION
The Co-Efficient Friction Tester accurately measures static and dynamic COF values of materials using the horizontal plane method, making it essential for quality control in multiple industries. With a 220 V 50 Hz power supply, it features a touchscreen interface, PC connectivity for real-time graphical analysis, and adjustable test speed and distance. Its emergency stop, test archive access, and support for various force units (N, kN, kgF, gF) enhance user control and safety. Compatible with plastic, packaging, textile, and composite materials, it complies with ISO 15359, ASTM D 1894, and other key standards. Optional test masses and custom paper sample designs further extend its application range.
