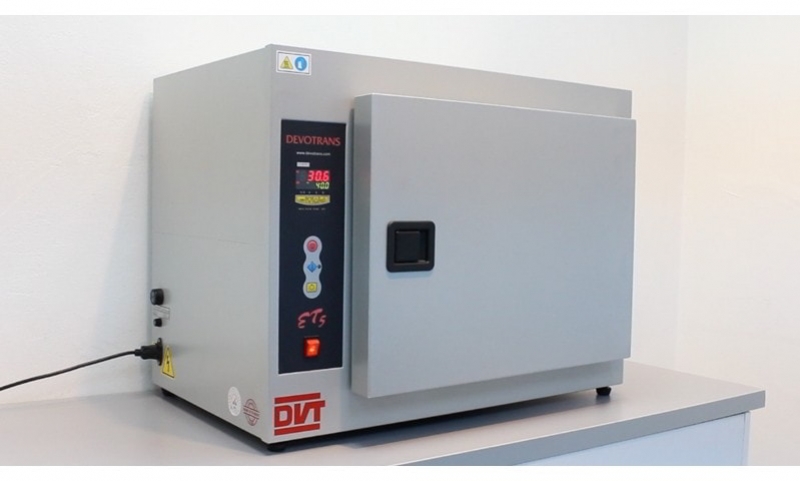

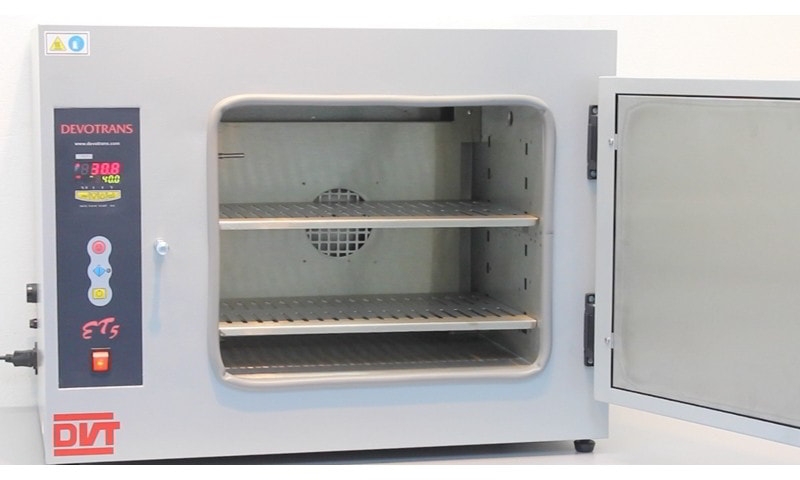

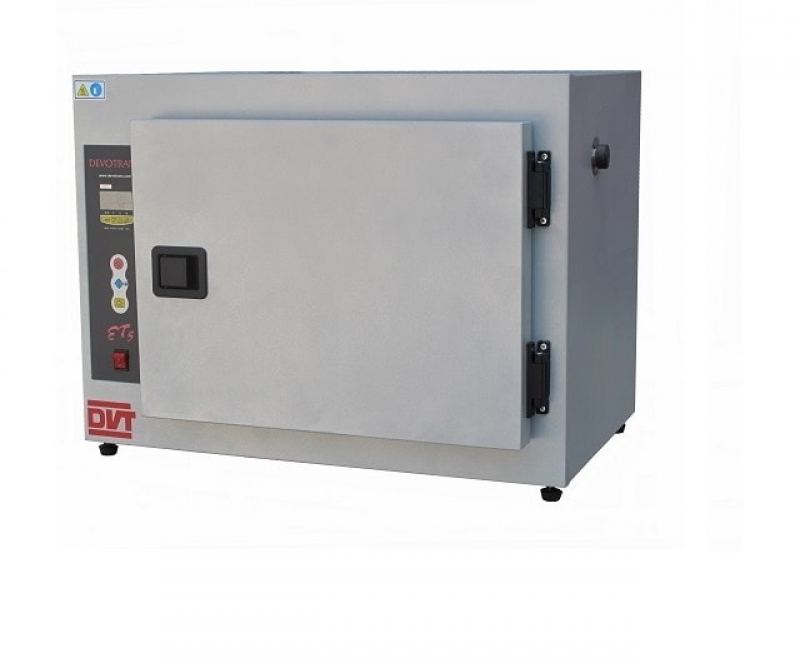

DRYING OVEN DVT ET 50 DVT ET 50

Used in all sectors especially in textile, plastic and rubber industries.

Also used for sterilization, drying, dehumidification, baking purposes in different industries.

INDUSTRIAL SECTORS OF USE

TECHNICAL INFORMATION

  • Cabinet and door insulation seals are made of high temperature resistant silicone.
  • By means of air circulation, uniform temperature is provided in entire cabin.
  • Temperature setting :  Can be set between ambient temperature +5°C and 200°C ,by ± 1°C accuracy.
  • In quality control laboratory, used for dehumidification by heating.
  • Micro- processed thermostat provides accurate temperature control.
  • Cabin interior is made of stainless steel or porous film coated aluminum.
  • Energy saving due to efficient thermal insulation.
  • Control   panel is equipped with TAG switch system and membrane.
  • Electrostatic powder paint coated frame.

OPTIONAL ADDITIONS

  • Large volume special cabins.
  • Extra shelf or hanger.
  • Devices for hot – ambient experiments.
  • Temperature cabins for tensile – compression machines.
  • Accurate temperature controlled models from ambient temperature up to 250 °C.
  • Special manufacturing under 250-300° C for ET 50.

APPROXIMATE DIMENSIONS AND WEIGHT

  • Width : 78 cm
  • Depth : 51 cm
  • Height : 57 cm
  • weight: :44 kg

TECHNICAL DOCUMENTATION

Specification Sheet

RELEVANT STANDARDS

  • TS 9764 HD 22.S3
  • TS EN 50086 / 1604
  • TS 7204 EN 60811-1-2
  • TS 1435 / 7422 / 11451
  • TS 7421 EN 60811

ADDITIONAL INFORMATION

The drying oven is widely used across industries such as textile, plastic, and rubber for sterilization, drying, dehumidification, and baking. Its design includes high-temperature resistant silicone seals and a uniform air circulation system to ensure consistent heat distribution. With temperature settings adjustable from ambient +5°C up to 200°C (±1°C accuracy), it provides precise thermal control through a micro-processed thermostat. The inner cabin, made of stainless steel or porous film coated aluminum, offers durability and corrosion resistance. Features like electrostatic powder coating, efficient thermal insulation, and a TAG switch membrane panel enhance usability and energy efficiency. Optional configurations such as large-volume cabins, high-temperature models up to 300°C, and thermal chambers for testing machines allow for tailored applications. It complies with international standards including TS EN 60811 and TS EN 50086.
