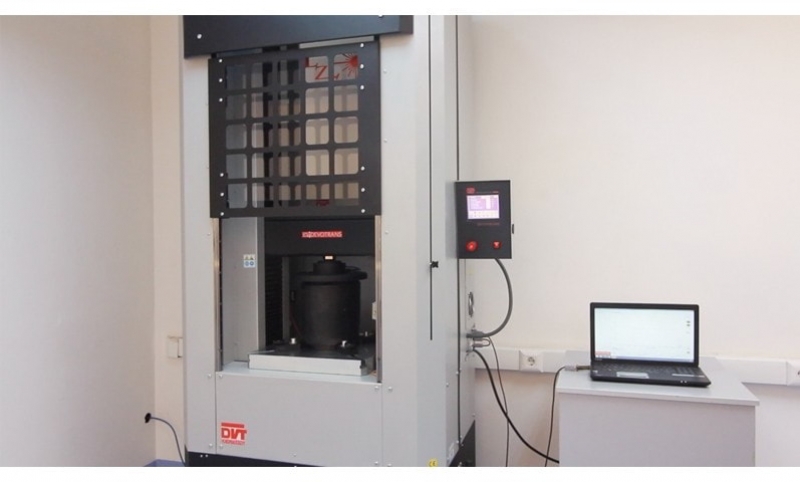

AIR SPRINGS TEST MACHINE DVT LZ DVT LZ

Vehicles’ air spring height and diameter changes are measured according to air pression and compression.

INDUSTRIAL SECTORS OF USE

TECHNICAL INFORMATION

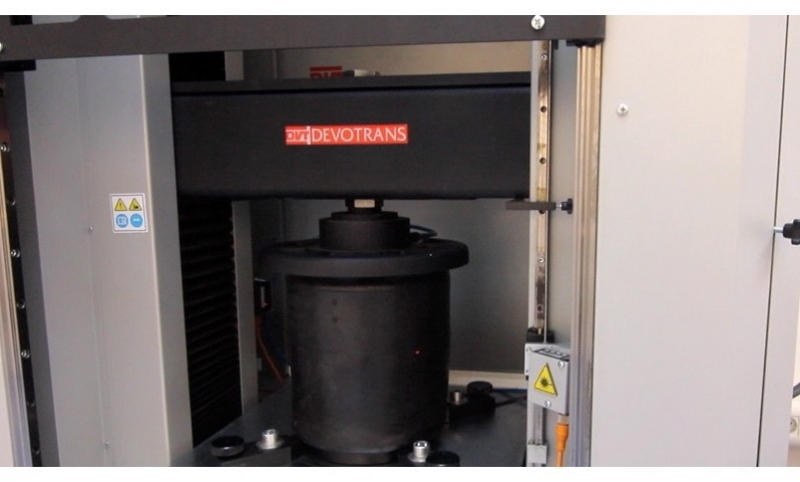

  • Air spring diameter is measured by laser. Accordingly compression load graphs are obtained.
  • Touch screen.
  • Rapid return to the starting point.
  • Sensitivity : ± 0.5%
  • Operating voltage : three-phase 380 V.
  • Power consumption : 3 KVA.
  • Speed adjustment is between 0.001 -500.000 mm/min.
  • Special software consisting of 5 graphs.
  • Capacity: 100 kN.
  • 3-point force measurement.
  • Inclined upper compression plate.

OPTIONAL ADDITIONS

  • Additional equipment for private experiments.
  • Hot / cold ambient test cabin.
  • Optional sizes.
  • Elongation measurement unit for the lower bellow height.

APPROXIMATE DIMENSIONS AND WEIGHT

  • Width: 1310 mm
  • Depth: 830 mm
  • Height: 2500 mm
  • Weight: 765 Kg

TECHNICAL DOCUMENTATION

Specification Sheet

ADDITIONAL INFORMATION

The air springs test machine is designed to measure height and diameter variations of vehicle air springs under different air pressure and load conditions. It uses laser-based diameter detection, providing accurate compression-load graphs with a sensitivity of ±0.5%. With a 100 kN capacity, 3-point force measurement, and an inclined upper compression plate, the system ensures precise and versatile testing. Operating at 380 V three-phase and consuming 3 KVA, it supports speed adjustments from 0.001 to 500,000 mm/min. The integrated touch screen and 5-graph software enhance usability. Optional features include hot/cold ambient test cabins, elongation measurement units, and custom sizes to meet specialized testing needs.
