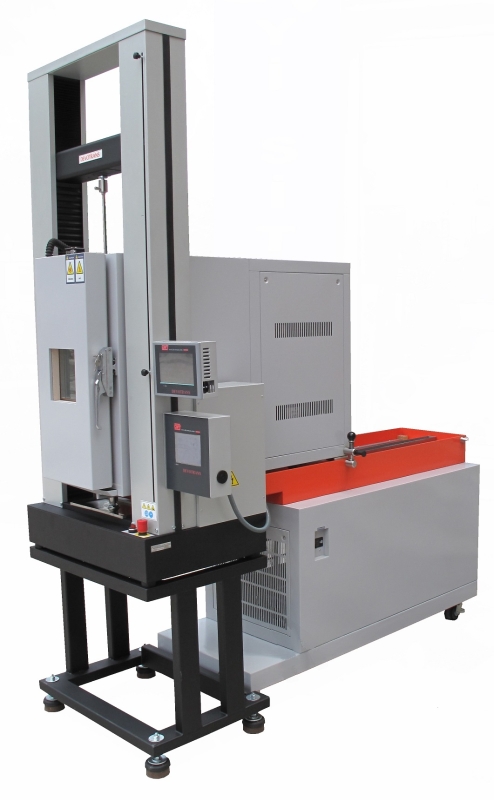

TENSILE, COMPRESSION TESTING MACHINE

TENSILE, COMPRESSION TESTING MACHINE DVT GP D GU DVT GP D GU

Used for measuring endurance of materials. If the option of extensometer is chosen, high precision measurements are possible.

INDUSTRIAL SECTORS OF USE

TECHNICAL INFORMATION

  • Operating voltage:  220VAC, 50 Hz.
  • Power consumption is: max. 1 KVA.
  • Speed adjustment is between 0.001 -500.000 mm/min.
  • Colour touch screen.
  • Double columns, double screws system.
  • Emergency stop button.
  • Rapid return to the starting point.
  • Programmable stop option.
  • Sensitivity: ± 0.5%.
  • Motion sensitivity: 0,001 mm.
  • Force unit: Newton, kN, kg or MPa.
  • Stops, depending on the breakout, breakage and distance.
  • Turkish, English, French and Russia language options.

TESTS PERFORMED WITH THE DEVICE

  • Product testing, such as opening/closing, fracture, tearing, compression, breaking, stretching, permanent deformation, puncture.

PRODUCTS SUBJECT TO TESTING

  • Aluminum, copper, spring, sheet metal profile…
  • Steel, iron…
  • Jute, Cable, steel wire…
  • Plastic products, Automotive and supplier industry,
  • Forest products,  Construction materials,
  • Glues,
  • Fabrics, leather, artificial leather, zipper,
  • Glass, porcelain, paper etc.

OPTIONAL ADDITIONS

  • Different jaw models available.
  • Computer and printer connections.
  • Additional equipments for special tests.
  • Extensometer.
  • Warm  - cold  ambient test chambers.
  • Metal or plexiglas safety cage.
  • Light barrier.

APPROXIMATE DIMENSIONS AND WEIGHT

  • Width : 93 cm
  • Depth : 52 cm
  • Height : 163 cm
  • Wight : 155 kg

TECHNICAL DOCUMENTATION

Specification Sheet

RELEVANT STANDARDS

  • TS EN ISO 7500-1/527-3/6892-1/
  • TS 1398-1EN ISO 527-1

ADDITIONAL INFORMATION

The tensile and compression testing machine ensures precise strength measurements of materials with ±0.5% accuracy and 0.001 mm motion sensitivity, particularly when paired with an extensometer. With a wide speed range of 0.001–500,000 mm/min, it supports diverse test conditions including fracture, puncture, and deformation. Its double-column, double-screw structure, touch screen interface, and emergency stop system enhance safety and usability. Compatible with various materials like metals, plastics, textiles, and composites, and compliant with TS EN ISO 7500-1, 527-3, 6892-1 standards, this device is ideal for industrial and laboratory applications. Optional features such as temperature chambers, extensometers, and safety cages expand its versatility in specialized testing scenarios.
