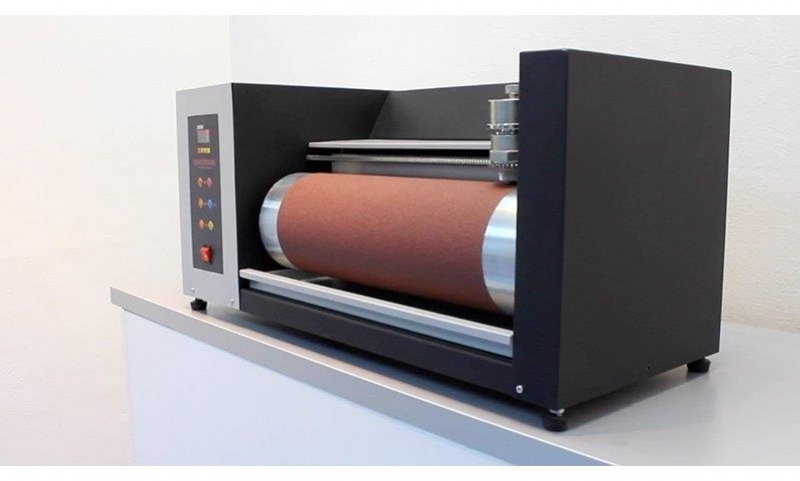

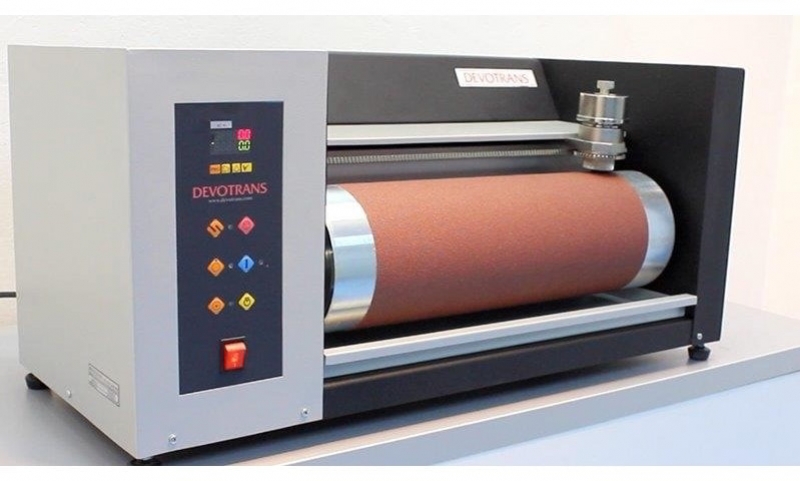

ELASTOMERS ABRASION TESTER DVT DA 6 DVT DA 6

Abrasion testing is for determining the rate of abrasion in elastomers.

    USED IN

    TECHNICAL INFORMATION

    • Cylinder diameter : 150 mm
    • Cylinder length : 500 mm
    • Speed of drum : 40± 1 rev. /min.
    • Abrasion pressure : 5N (510 gr±0,2) ve 10N (1020 gr±0,2 )
    • Test sample diameter: 16 mm
    • Progress step : 4,2 mm
    • Max. experiment stroke: 40±0, 2 meter.
    • By using electronic stroke metering unit, test can be stopped at required distance.
    • Unit automatically stops at pre selected distance.
    • Death end feature stops the unit in any case.
    • Abrasive size : 400x500 mm
    • Regulated Operation Voltage: 50 Hz 220 Volt 180-240 AC
    • Unit is equipped with TAG switch system.
    • Grounded Plug – fuse protected
    • Electrostatic powder paint is used.

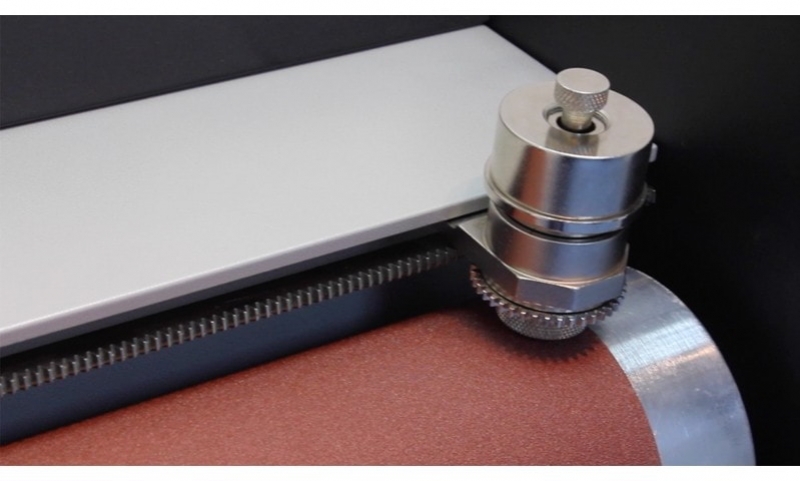

    • Unit has an easy-to-use sample holder clamp.
    • Sample Holder with rotary heat.

    OPTIONAL ADDITIONALS

    • Dust absorbent unit.
    • Metal-wear model with various mass  and clamps
    • Special sample holders
    • Calibrated sandpaper can be attached.
    • Etalon calibrated rubber.

    ACCESSORIES

    • Sample cutting punch.
    • Dust collector tray.
    •  Instruction manual
    • Power cable
    • None calibrated abrasive.

    APPROXIMATE DIMENSIONS AND WEIGHT

    • Width :80 cm.
    • Depth :35 cm.
    • Height : 37 cm.
    • Weight :55 kg

    RELEVANT STANDARDS

    • ISO 4649
    • ISO 20 344
    • DIN 53 516
    • TS EN ISO 12 947 / 20344
    • TS 11007/5548
    • ISO 20871
    • ASTM D 5963-4
