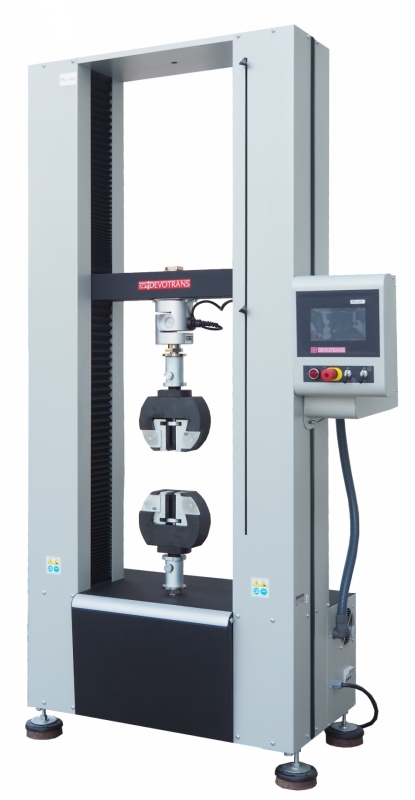

TENSILE, COMPRESSION TEST DEVICE DVT FU D NU DVT FU D NU
Used in tensile and compression tests for high strength materials such as metals.
INDUSTRIAL SECTORS OF USE
TECHNICAL INFORMATION
- Stopping, depending on the Breakout/Fracture or distance.
- Maintenance-free, solid and reliable structure
- Touch screen.
- Rapid return to the starting point.
- Emergency stop button.
- 4 columns, 2 screws system.
- Sensitivity is ±0,5%.
- In tensile tests, the direction of the movement is upwards
- Operation Voltage is : 3 faz 380 V, 50 Hz.
- Power consumption is : max. 5 KVA
- Has units of Newton, kN, Kg and Mpa.
- Speed adjustment is between 0.001-500 mm/min.
- Standard software is available.
- Movement precision: 0,001 mm
- The feature of speed depending on force (N/s)
- Turkish, English, French, Italian and Russia language options
- Our capacity options are between 50-100 Newton
INDUSTRIES OF APPLICATION
- Metal manufacturers, wire manufacturers.
- Conveyor manufacturers.
- Pipe manufacturers.
- Laboratories, rope manufacturers
PRODUCTS SUBJECT TO TESTING
- Aluminum, copper, spring, sheet metal profile ...
- Steel, iron.
- Jute, big bag, jumbo bag, seat belt.
- Cable, steel wire ...
- Plastic products.
- Automotive and supplier industry.
- Forest products.
- Construction materials.
- Glues.
- Rubber, conveyor belt, composites.
TESTS PERFORMED WITH THE DEVICE
- Product testing, such as opening/closing, fracture, tearing, compression, breaking, stretching, permanent deformation, puncture.
OPTIONAL ADDITIONS
- Different jaw models available.
- Custom made software.
- Computer and printer connections.
- Additional equipment for special tests.
- Extensometer.
- Warm - cold ambient test chambers.
- Metal or plexiglas safety cage.
- Light barrier.
APPROXIMATE DIMENSIONS AND WEIGHT
- Width : 110 cm
- Depth : 70 cm
- Height : 258 cm
- Wight : 450 kg
TECHNICAL DOCUMENTATION
RELEVANT STANDARDS
- TS EN ISO 7500-1/527-3/6892-1
- TS 1398-1EN ISO 527-1
- TS ISO 37
ADDITIONAL INFORMATION
The tensile and compression test device is specifically engineered for evaluating the mechanical strength of metals, plastics, composites, and textiles with a sensitivity of ±0.5% and a movement precision of 0.001 mm. Featuring a touchscreen interface, speed control from 0.001 to 500 mm/min, and force-dependent speed adjustment (N/s), it ensures precise and reliable test execution. It complies with TS EN ISO 7500-1, ISO 527-1, and ISO 37 standards, making it ideal for laboratories and industrial environments. With multilingual software, it supports global usability, while its compatibility with extensometers, safety cages, and thermal test chambers allows for customized test setups across industries like automotive, construction, and cable manufacturing.
