LEAK TESTER
LEAK TESTER
PRODUCT VIDEO WATCH

LEAK TESTER DVT VK E DVT VK E

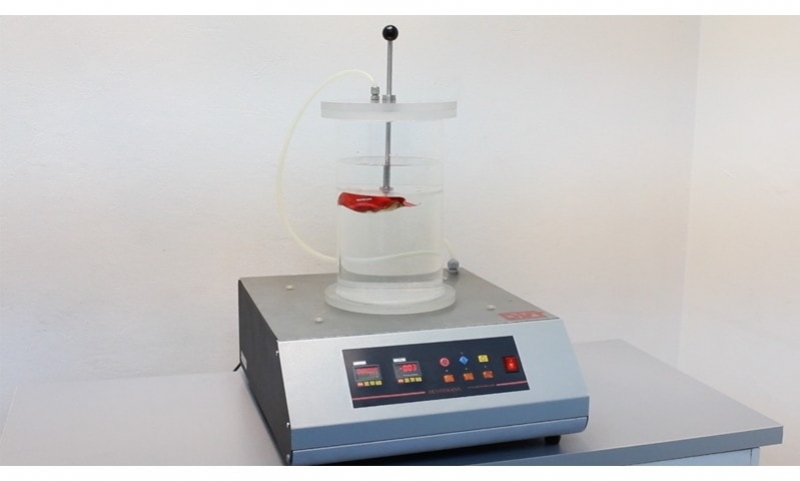

Leakage tester is designed for the leakage tests of packages for food, drugs, medical instruments, electronic components, stationeries and other industrial products.

Leakage test is performed in vacuum environment.

    INDUSTRIAL SECTORS OF USE

    TECHNICAL INFORMATION

    • Vacuum value is read on digital display.
    • Test period is read on digital display.
    • Test period is pre-entered. Audible warning at the end of the test.
    • Test duration: between 1-99 min.
    • Easy to use.
    • Deformation under vacuum, observed by the transparent cabin.
    • Vacuum, up to -500 mbar.
    • Suitable for water or air environment tests.
    • Reservoir with customized dimensions available on an optional basis.
    • Operation voltage: 220 V 50 Hz.
    • Operation pressure (air input): min. 6 bar.

    INDUSTRIES OF APPLICATION

    • Bottle and cap manufacturers.
    • Vacuumed box and foil manufacturers.
    • Food manufacturers.

    OPTIONAL ADDITIONS

    Square reservoir

    Width37 cm
    Depth37 cm
    Height37 cm
    Volume42 liter

    Cylinder reservoir



    Model with small reservoirModel with big reservoir
    Inner diameter23 cm23 cm
    Inner height19 cm23 cm
    Volume8 liter14 liter

    APPROXIMATE DIMENSIONS AND WEIGHT

    • Width : 500 mm.
    • Depth : 600 mm.
    • Height : 680 mm.
    • Weight : 31 kg.

    TECHNICAL DOCUMENTATION

    Specification Sheet

    RELEVANT STANDARDS

    • ASTM D3078
    • GB/T 15171
    • ASTM D4991
    • ASTM D6653

    ADDITIONAL INFORMATION

    The leak tester is ideal for vacuum leakage testing of food packaging, pharmaceuticals, medical devices, and electronic components. With a vacuum capacity of up to -500 mbar, it supports tests in both water and air environments. Equipped with a digital display for vacuum value and test duration, it allows users to pre-set the testing time and receive an audible alert at the end. The transparent test chamber provides clear observation of any deformation during vacuum. Its easy operation, optional custom reservoir sizes, and compatibility with 220V 50Hz power make it suitable for various industrial applications. The device complies with ASTM D3078, ASTM D4991, ASTM D6653, and GB/T 15171 standards, ensuring reliable and standardized testing procedures.
