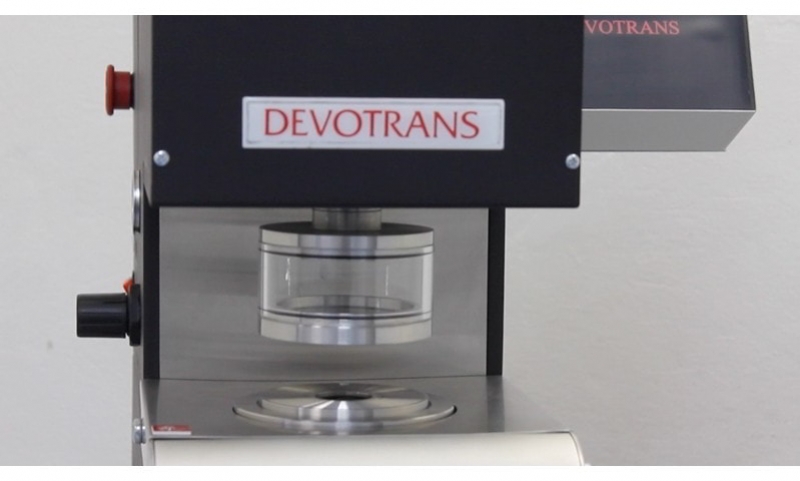

TOUCH SCREEN CORRUGATED PAPERBOARD AND PAPER BURSTING STRENGTH TESTING MACHINE
TOUCH SCREEN CORRUGATED PAPERBOARD AND PAPER BURSTING STRENGTH TESTING MACHINE
TOUCH SCREEN CORRUGATED PAPERBOARD AND PAPER BURSTING STRENGTH TESTING MACHINE
PRODUCT VIDEO WATCH

TOUCH SCREEN CORRUGATED PAPERBOARD AND PAPER BURSTING STRENGTH TESTING MACHINE DVT KP DLC DVT KP DLC

Bursting strength of paper or paperboard is determined according to increasing hydraulic pressure.

INDUSTRIAL SECTORS OF USE

TECHNICAL INFORMATION

  • Operating Voltage: 220 VAC – 50 Hz. 200 VA.
  • Experiment range for paper: 70-1400 kPa.
  • Experiment range for corrugates: 350-5500 kPa.
  • Test sample pressure is adjustable between 0-600 Kg.
  • After burst stops automatically.
  • After burst, applied pressure is automatically reset.
  • No need to change hydraulic oil periodically.
  • Economic model (DVT KP E) is available.

APPROXIMATE DIMENSIONS AND WEIGHT

  • Width : 44 cm
  • Depth : 65 cm
  • Height : 54 cm
  • Wight : 79 kg

TECHNICAL DOCUMENTATION

Specification Sheet

RELEVANT STANDARDS

  • ISO 2758 / 2759 / 5651 / 3034
  • ASTM D 774/2738
  • DIN  53141
  • EN ISO 2759
  • EN  ISO 2758
  • TS 3026
  • TS 3124
  • TS 3123
  • BS 3137
  • TAPPI 4403

ADDITIONAL INFORMATION

The touch screen corrugated paperboard and paper bursting strength testing machine is engineered to measure the bursting resistance of paper and corrugated materials by applying increasing hydraulic pressure. It supports a wide test range of 70-1400 kPa for paper and 350-5500 kPa for corrugated board, with sample pressure adjustable between 0-600 kg. This device features automatic stopping and pressure release after bursting, enhancing user safety and efficiency. Its maintenance-free hydraulic system eliminates the need for fluid replacement. Compact and robust (44×65×54 cm, 79 kg), it complies with ISO 2759, ASTM D 774, and TAPPI 4403 standards, making it ideal for quality control labs.
